プロダクト細部
起源の場所: ヘナン,中国
ブランド名: BAISHUN MACHINERY
証明: CE/ISO9001
モデル番号: CK5116
文書: 製品説明書 PDF
支払及び船積みの言葉
最小注文数量: 1セット
価格: negotiable
パッケージの詳細: 輸出 標準 木製ケース パッケージ または 顧客との交渉
受渡し時間: 45 営業日
支払条件: L/C,T/T,ウェスタンユニオン
供給の能力: 20セット/セット/月
製品名: |
2 軸垂直 CNC lathes マシン |
機械の種類: |
CK5116 |
最大回転直径 (mm): |
1600 |
作業部品の最高高さ (mm): |
1200 |
作業台のサイズ (mm): |
1400 |
作業部品の最大重量: |
3.2tons |
スピンドル数: |
シングル |
電圧: |
380V |
キーワード: |
旋盤機械 |
関数: |
金属加工 |
製品名: |
2 軸垂直 CNC lathes マシン |
機械の種類: |
CK5116 |
最大回転直径 (mm): |
1600 |
作業部品の最高高さ (mm): |
1200 |
作業台のサイズ (mm): |
1400 |
作業部品の最大重量: |
3.2tons |
スピンドル数: |
シングル |
電圧: |
380V |
キーワード: |
旋盤機械 |
関数: |
金属加工 |
China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.
Main Features:
1. CNC vertical lathe, the CNC system uses Siemens 828DD system, there is a vertical tool post, the maximum machining diameter is 1600mm to 2600mm of single column vertical lathe, For CK5116 type, it is designed with the table diameter of 1400mm, and the standard maximum machining height is 1200mm.
2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.
3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.
4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.
Machine parameter
|
CK518 |
CK5112Q |
CK5112A |
CK5116Q |
CK5120A |
CK5126A |
|
|
Max. turning diameter of vertical tool rest (mm) |
800 |
1200 |
1200 |
1600 |
2000 |
2600 |
|
Working table diameter (mm) |
700 |
1000 |
1000 |
1400 |
1800 |
2200 |
|
Max. height of work-piece (mm) |
800 |
1000 |
1000 |
1200 |
1250 |
1400 |
|
Max. weight of work-piece (kg) |
1500 |
1500 |
3200 |
3200 |
8000 |
8000 |
|
Range of worktable rotation speed (rpm) |
30-260 |
20-180 |
6.3-200 |
15-160 |
3.2-100 |
2.2-70 |
|
Feeding series |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
|
Range of tool rest feed (mm/min) |
0.25-90 |
0.25-90 |
0.8-86 |
0.25-90 |
0.8-86 |
0.8-86 |
|
Cross beam travel (mm) |
500 |
1000 |
650 |
1200 |
890 |
1090 |
|
Horizontal travel of tool rest (mm) |
500 |
700 |
700 |
900 |
1115 |
1400 |
|
Vertical travel of tool rest (mm) |
450 |
500 |
650 |
750 |
800 |
800 |
|
Size of section of cutter bar (mm) |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
30*40 |
|
Main motor power (kw) |
11 |
15 |
22 |
15 |
30 |
30 |

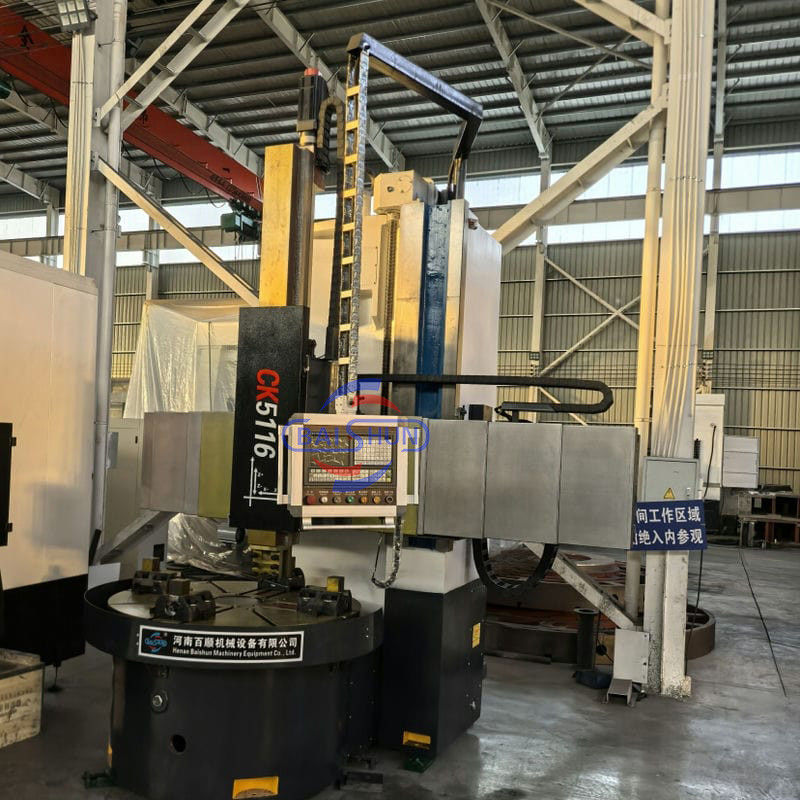

Detail Machine Photo:
